How thermal imagers help detect equipment problems before failure
-1.jpg&w=3840&q=75)
Key Points(5)
- Most equipment doesn't fail without warning.
- It gives signals — a motor running slightly hotter than it should, a cable joint showing unusual heat at its connection point, a bearing warming up weeks before it seizes.
- The problem is that these signals are invisible to the naked eye.
- That's where thermal imagers come in.
- A thermal imaging camera detects infrared radiation — the heat that every object emits — and converts it into a visual image called a thermogram.
Most equipment doesn't fail without warning. It gives signals — a motor running slightly hotter than it should, a cable joint showing unusual heat at its connection point, a bearing warming up weeks before it seizes. The problem is that these signals are invisible to the naked eye. That's where thermal imagers come in.
A thermal imaging camera detects infrared radiation — the heat that every object emits — and converts it into a visual image called a thermogram. Each pixel in that image represents a temperature point. The result is a real-time heat map of whatever you're looking at, whether it's an electrical panel, a motor, a conveyor, or a furnace wall.
What thermal imagers do
Every object with a temperature above absolute zero emits infrared energy. Thermal imagers pick up that energy and make it visible. The camera doesn't need light to do this — it works in complete darkness, through smoke, and in harsh ambient conditions.
The image it produces shows temperature variation across a surface. Hot spots show up in contrasting colors. Cold spots do too. A maintenance engineer looking at a thermogram of an electrical switchyard can see, in seconds, which connection is running 15 degrees hotter than the ones next to it.
Tempsens' thermal imaging cameras — both online and portable versions — are built around high-resolution infrared sensors that translate this heat data into clear, detailed images. The key spec here is sensor resolution. A higher-resolution sensor produces a sharper thermogram, which makes it easier to pinpoint exactly where a problem is, not just that one exists somewhere.
Online vs Portable
Online thermal imaging cameras
These are fixed, network-connected cameras. Think of them like CCTV cameras — except they're measuring heat, not capturing visible light. They're installed in a static location and run 24 hours a day, seven days a week.
The big advantage is continuous monitoring. An online thermal imaging camera streams live thermal data and can be connected to SCADA platforms, industrial control systems, or cloud-based monitoring software. When a temperature crosses a set threshold, it triggers an automatic alarm. The maintenance team doesn't need to walk the floor to catch the problem — the system tells them.
This is especially useful for assets that are always running: furnaces, electrical substations, conveyor systems, high-voltage switchgear. These are exactly the places where a thermal event can go from "early warning" to "catastrophic failure" in a matter of hours if no one catches it.
Portable thermal imaging cameras

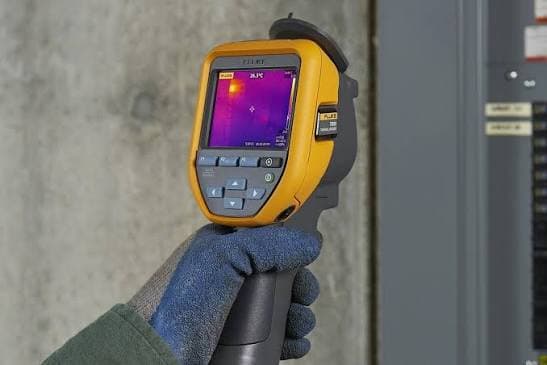

Portable cameras are handheld, and they're designed for inspections. A technician carries one through a facility and scans equipment systematically — motors, panels, junctions, bearings, insulation — building up a thermal picture of the site's condition.
Tempsens' portable thermal imaging cameras are built for tough industrial environments. They produce high-resolution thermal images and are suited for electrical assessments, mechanical inspections, and proactive maintenance rounds.
The practical value here is flexibility. You can take the camera to the equipment rather than installing sensors on every asset. For periodic inspection programs, that makes a portable camera a cost-effective starting point.
Why is this important for preventive maintenance
The traditional approach to maintenance is one of two things: run it until it breaks, or replace it on a fixed schedule regardless of condition. Both have obvious problems. Reactive maintenance means unplanned downtime. Scheduled replacement means spending money on parts that still have years of life in them.
Thermal imaging supports a third approach — predictive maintenance. You monitor the actual condition of the equipment and act when the data says it's time, not before and not after a breakdown.
Here's why heat is such a useful signal. Electrical resistance goes up as connections degrade. Mechanical friction increases as bearings wear. Insulation breaks down as it ages. In every one of these cases, the result is heat. The equipment gets hotter than it should before anything else visibly goes wrong.
Tempsens' online thermal camera systems can detect these temperature anomalies weeks or even months before they cause a failure. The system establishes a baseline thermal signature for the equipment when it's healthy. Any deviation from that baseline shows up on the monitor, and the maintenance team can schedule a repair during a planned shutdown — rather than scrambling during an emergency one.
That gap in cost between a planned repair and an unplanned breakdown is significant. Unplanned downtime doesn't just cost the price of the replacement part. It costs production time, labor at short notice, and sometimes damage to downstream equipment.
Where thermal imagers are used in industry
- Electrical inspections — substations and switchyards are classic applications. Loose or corroded connections create hot spots that show up clearly on a thermogram long before they trip a breaker or arc.
- Mechanical inspections — motors, bearings, and conveyors all generate heat when something is wrong. A bearing running hot is easy to miss on a walkthrough but impossible to ignore on a thermal image.
- Furnace monitoring — in industries like steel, glass, and cement, maintaining the integrity of furnace refractory lining is critical. Thermal cameras can detect cold spots in a furnace wall that indicate lining damage, allowing repairs before a full failure.
- Early fire detection — coal storage yards and similar environments present fire risk from spontaneous combustion. Thermal cameras can detect heat buildup in storage piles well before visible smoke or flame.
- Process monitoring — in manufacturing, consistent process temperatures are often tied directly to product quality. Thermal imaging gives continuous visibility into temperature uniformity across a process.
What to look at when selecting a thermal camera
Not every thermal camera is right for every application. The main parameters worth evaluating:
Resolution determines the detail of the thermal image. Higher resolution means you can identify the exact location of a fault on a complex piece of equipment.
Temperature range needs to match the operating environment. A camera rated for standard industrial temperatures won't be suitable for furnace monitoring applications where surface temperatures run much higher.
Frame rate matters when monitoring moving equipment or fast-changing processes.
Field of view (FOV) determines how much of a scene the camera captures. A wide FOV suits large areas; a narrow one gives more detail on a smaller target.
Connectivity is key for online systems. Integration with existing SCADA or monitoring software determines how the data is stored, analyzed, and acted on.
Final thought
Equipment problems don't appear from nowhere. They develop over time, and heat is one of the earliest and most reliable signals that something is changing. Thermal imagers make that signal visible.
Whether you're running continuous monitoring with a fixed online system or building an inspection program around a portable camera, the core value is the same: you find out before the failure, not after it.
